●YC-767CE款是在原有機型YC-767基礎上改良，且根據國際客戶要求訂制而誕生的新機型。 ●專為圓形，桶圓形，方形等多種承印物而設計，結構簡單合理、調試方便快捷、運行穩定可靠。 ●整機集成同步自動上料、自動升降印刷及汞燈/高強度LED/紫外線固化等多種功能，大大提高了印刷效率，印刷速度最快可達4000pcs/hr。 ●通過觸摸顯示屏操作輕松實現人機對話，使操作更加得心應手。 ● 具備圓瓶預先對位功能，使印刷過程更加高效精準。 ●通過電子傳感器實現“無件不印刷”、氣壓過低報警等自動監測功能。 ●全機電子元件及控制系統均進口自德國和日本，確保了穩定的印刷品質。 ●整機采用機械同步原理；實現全自動化一條龍生產線；自由組合單色至多色印刷。 ●滿足多種印刷包裝工藝要求，可訂制加裝全自動貼標/燙金/CCD檢測等功能最大化一機多用。
| 技術參數(Specifications) | 圓形容器(Cylindrical) | 扁形容器(Elliptical) | ||||||||||||
| 最大印刷長度(Max Printing Length) | 300mm | 120mm | ||||||||||||
| 最大印刷寬度(Max Printlng Width) | 250mm | 40mm-120mm | ||||||||||||
| 印刷產品尺寸(Printed Objec Dimension) | Φ;25mm-140mm L:60mm-300mm | R:25mm-250mm L:60mm-300mm | ||||||||||||
| 最快速度(Max speed) | 4000Pcs/hr | 5000Pcs/hr | ||||||||||||
| 供氣壓力(Air pressure) | 5-7kg/cm | |||||||||||||
| UV燈功率(UV Lamp Power) | 5kw | |||||||||||||
| 電源(Power Supply) | AC 380V 3Phase 50/60Hz 9kw | |||||||||||||
| 外形尺寸(Dimension) | 2800(L)x2500(W)x2100(H)mm | |||||||||||||
| 重量(Veight) | 1500kg | |||||||||||||

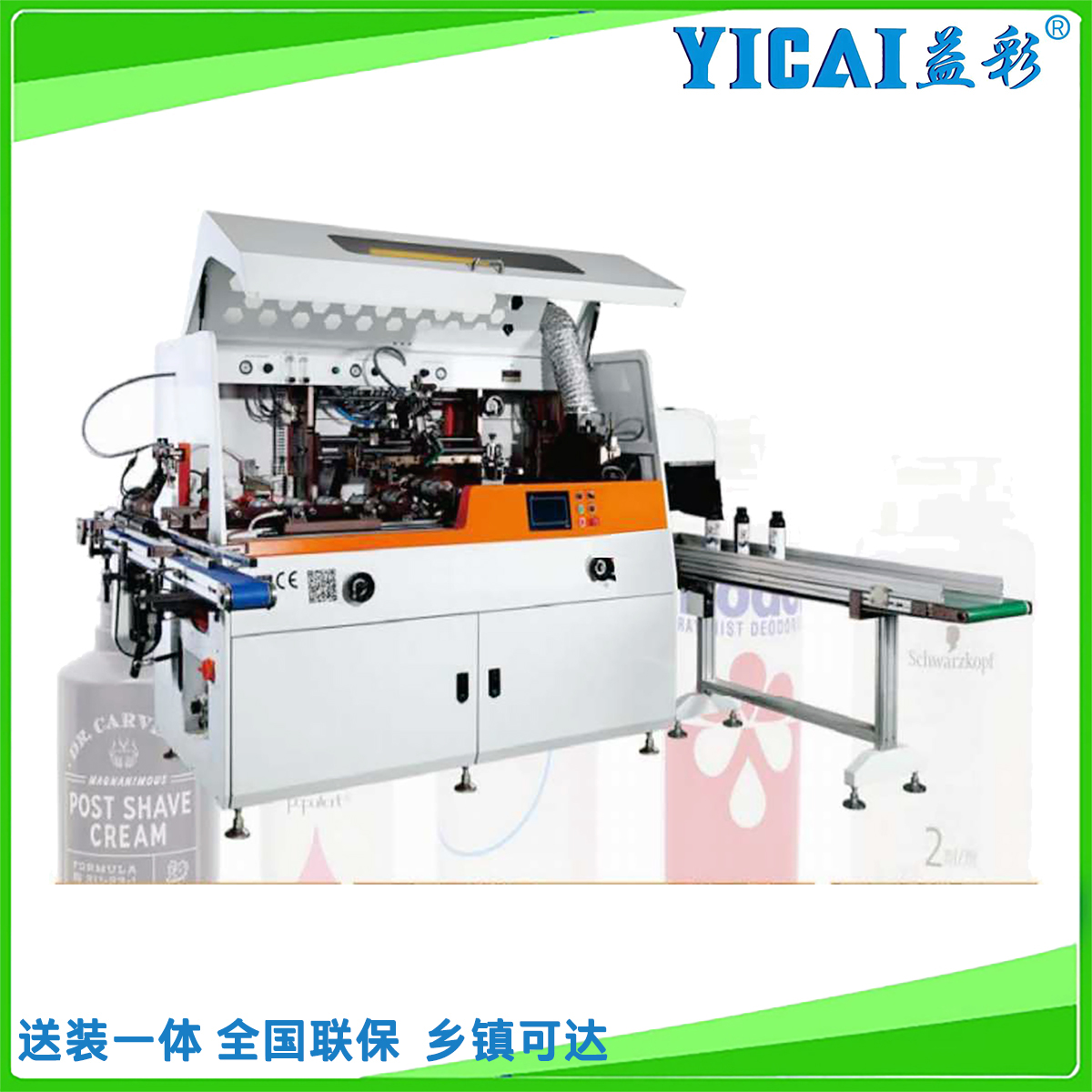

產品簡介
●YC-767CE款是在原有機型YC-767基礎上改良，且根據國際客戶要求訂制而誕生的新機型。
●專為圓形，桶圓形，方形等多種承印物而設計，結構簡單合理、調試方便快捷、運行穩定可靠。
●整機集成同步自動上料、自動升降印刷及汞燈/高強度LED/紫外線固化等多種功能，大大提高了印刷效率，印刷速度最快可達4000pcs/hr。
●通過觸摸顯示屏操作輕松實現人機對話，使操作更加得心應手。
● 具備圓瓶預先對位功能，使印刷過程更加高效精準。
●通過電子傳感器實現“無件不印刷”、氣壓過低報警等自動監測功能。
●全機電子元件及控制系統均進口自德國和日本，確保了穩定的印刷品質。
●整機采用機械同步原理；實現全自動化一條龍生產線；自由組合單色至多色印刷。
●滿足多種印刷包裝工藝要求，可訂制加裝全自動貼標/燙金/CCD檢測等功能，最大化一機多用。

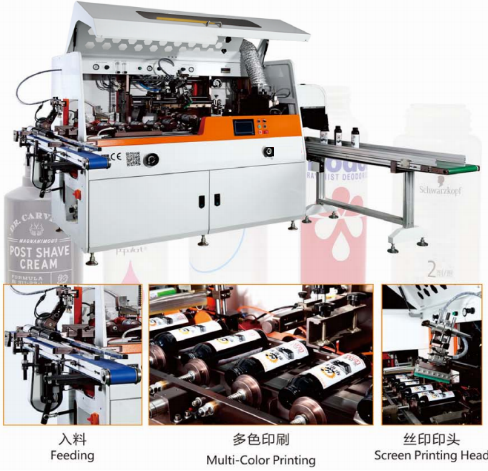

Introduction
● YC-767CE is a new model that is improved con the basis of the original model YC-767,and is customized according to the requirements of international customers
● Specially designed for screen printing on circular,round,oval,square containers. It makes debugging more convenient and efficient, also makes operation more stable and reliable.
● This type of machine can integrate automatic feeding,automatic lifting printing. mercury lamp/high intensive LED/ultraviolet curing and other functions synchronously, It also combines machine driven with pneumatic driven.
All of these greatly improve printing efficiency and make the max.printing speed up to 4000pcs/hr.
● With touch screen,the whole operation becomes easy and convenient.
● It can also pre-check objects'position before printing which makes printing more precise and high-efficiency.
● Due to specialized electronic sensors,it can achieve automatic monitoring function such as Tho object,no printing" and automatic alarm when air pressure is too low.
● All elecrical components and control systems are imported from Germany and Japan,so it ensures high quality and stability of printing.
● The whole machine adopts the principle of mechanical synchronization:realizes full automation one-stop production line:flexibly combines single-color to multi-color printing
● To meet the requirements of various printing and packaging processes,it can be customized and equipped with functions such as automatic labeling/hot stamping/CCD detection,to maximize multiple uses and functions.
