| 技術參數 | SPECIFICATIONS | |||||||||||||
| 機器型號 Model | 最大印刷面積 | 最大網框（外徑）尺寸 | 流水線皮帶尺寸 | 重復套 印精度 | 工作 電壓 | 印刷物 厚度 | 印刷速度 | 機器尺寸 | 抬板上下 驅動方式 | 左右印刷 驅動方式 | 機器 重量 | 氣源壓力 | 功率 | |
| Max. printing size(mm) | Frame size(mm) | Line belt size(mm) | Repeat accuracy (mm) | Voltage (V) | Thickness of pringting objects(mm) | Printing speed (pcs/h) | Dimension (L*W*H) (mm) | Up and down drive mode | Left and right drive mode | (kg) Weight | Air preeure (bai) | Power (W) | ||
| YICAI-4060P N/V/T/F/R | 350*550 | 500*800 | 按需訂做 | ±0.08 | AC220 | 80 | 800-1200 | 按需訂做 | 氣動 | 氣動 | 300 | 5~6 | 40 | |
| 型號介紹：N：普通不銹鋼工作臺；V：真空吸氣式工作臺；T：T型工作臺；F：前后跑臺式工作臺；R：無桿氣缸；P:精密型帶外殼；M:電機驅動; H:立式 Model:N:Normal Stainless Tablel;V:Vacuum Table;T:T-Shaped Table;F:Running Table;R:Rod-less Cylinder;P:Precise ; M:Motor-driven style；H:vertical | ||||||||||||||
| 簡要描述 |

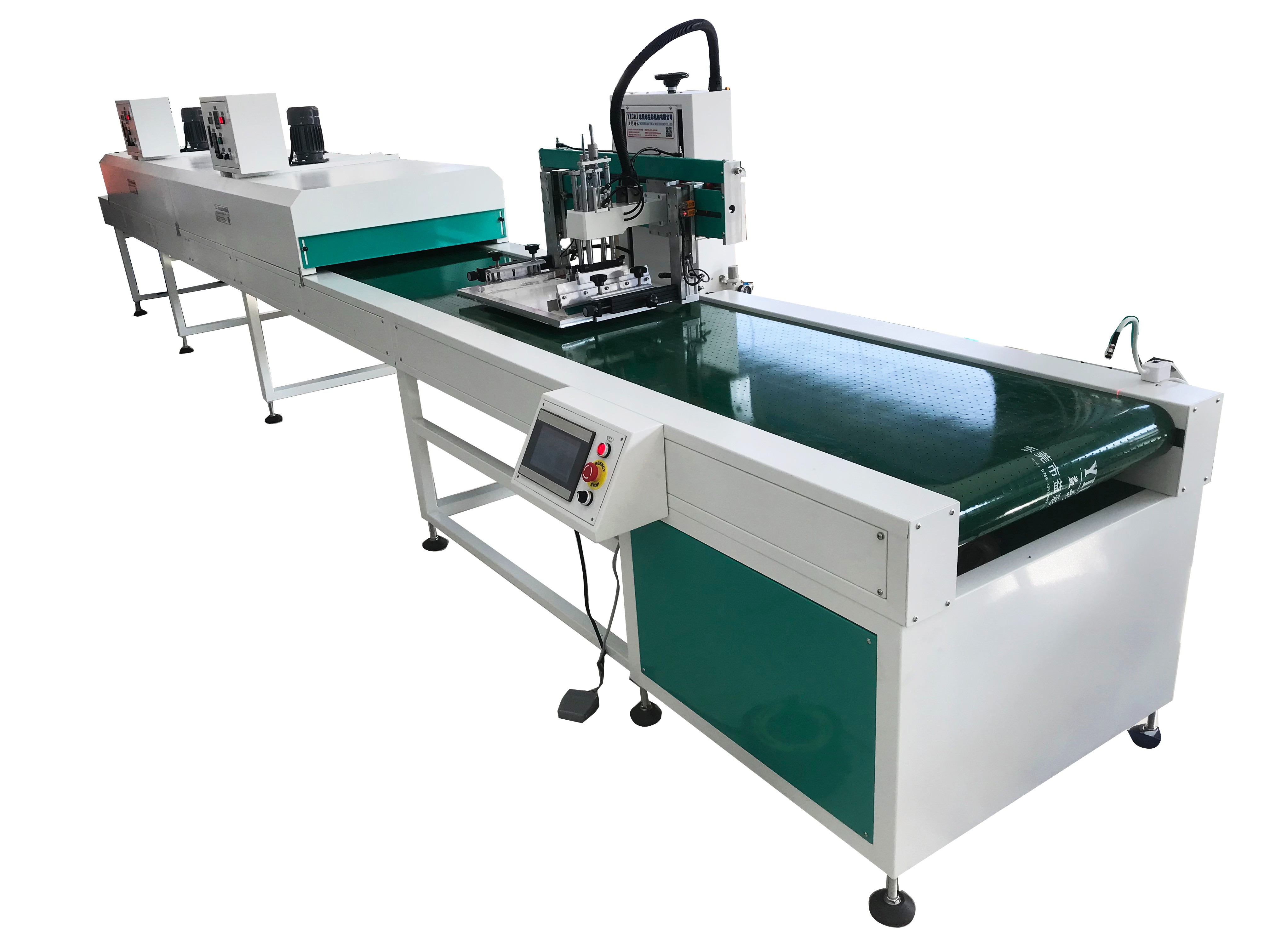

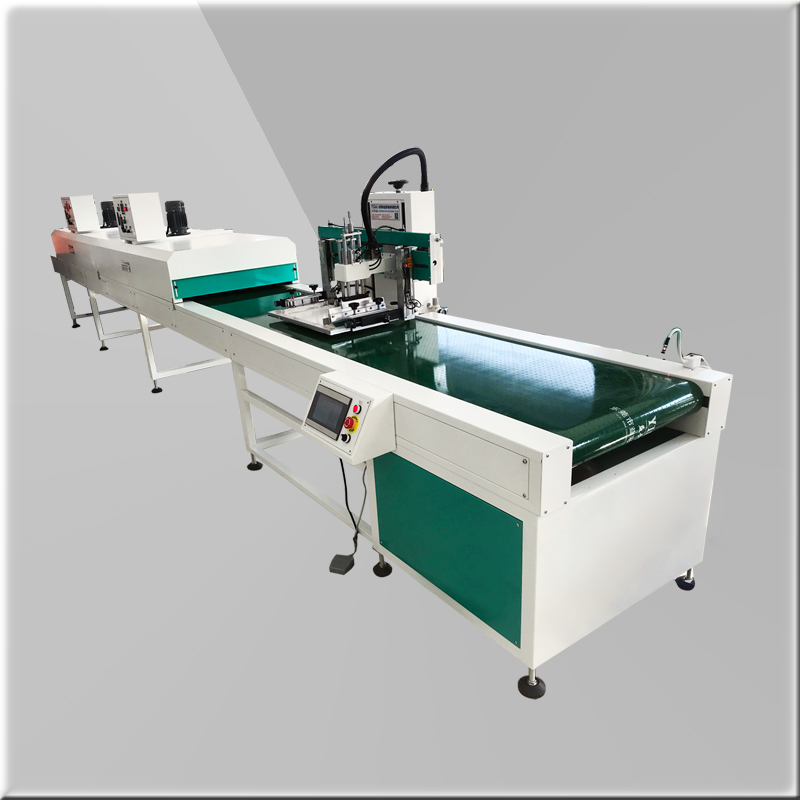

本設備采用伺服電機及工控一體大屏控制，并可選配真空吸附功能保正印刷位置精度，印刷定位位置精準可控，操作方便快揵可大大提高生產效率
The device adopts servo motor and industrial control integrated large screen control, and can be equipped with vacuum adsorption function to ensure printing position accuracy, printing positioning accurate and controllable, easy to operate, fast fault, which can greatly improve production efficiency
| 特征 |
1.滑行部位運行速度可獨立調較，使用更方便、快捷；
2.印刷行程和速度可調，能滿足不同的印刷要求；
3.采用進口軸心，軸套使絲刮刀平穩滑行印刷；
4.自動平衡刮刀，可保證印刷壓力均衡；氣動抬刀功能，省時高效；
5.采用觸摸屏一體機配合步進電機精準輸送定位
6.線體及烘溫區長寬及溫度均可依產品需求訂做
1. The running speed of sliding part can be adjusted independently, which is more convenient and fast to use;
2. Printing stroke and speed can be adjusted to meet different printing requirements;
3. Imported axle, axle sleeve to smooth slide printing of wire scraper;
4. Automatic balance scraper to ensure balanced printing pressure; Pneumatic knife lifting function, time saving and high efficiency;
5. Adopt touch screen all-in-one machine with stepping motor for precise conveying and positioning
6. The length, width and temperature of line body and baking temperature zone can be customized according to product requirements
